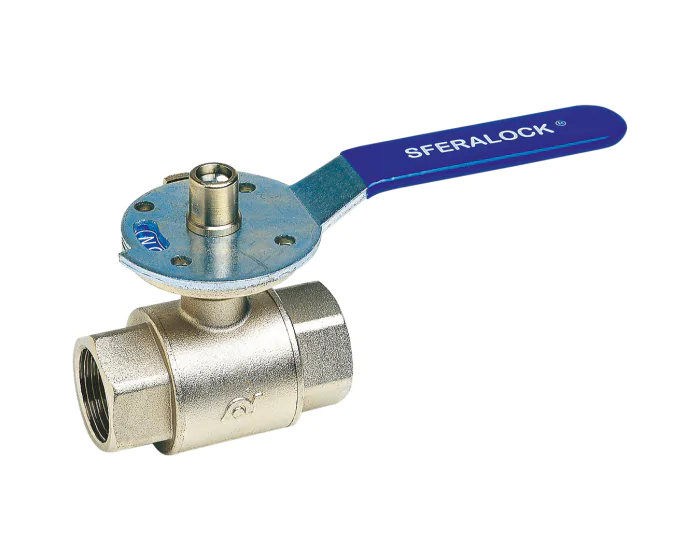

The Sferalock® locking device brass ball 556 BSP valve with full bore and wide flat bearing for shut-off of water, sanitary heating, sprinkling, irrigation, air conditioning and compressed air networks.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| DN metric | 8/13 |
| Brand | AIRAGA |
| Thread standard | ISO 228-1 |
| Stem sealing material | NBR double O-ring |
| Type of coating | Nickel-plated |
| Opening device | Handle |
| Application | Industry |
| Shaft/stem matérial | Brass CW614N |
| Lockable | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 63.5 |
| Fluid | Compressed air |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 40 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Chrome-plated brass CW617N |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Handle material | Carbon steel |
| Handle type | Blue lever |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 1/4'' | 556002 | S1009937 |
€31.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3/8'' | 556003 | S1009938 |
€31.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1/2'' | 556004 | S1009939 |
€31.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3/4'' | 556005 | S1009940 |
€34.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1'' | 556006 | S1009941 |
€44.19
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1''1/4 | 556007 | S1009942 |
€58.40
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 1''1/2 | 556008 | S1009943 |
€80.80
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2'' | 556009 | S1009944 |
€103.80
(excl. btw)
|
add to cart |
